Heavy Duty Stable Structure
Equipped with a heavy-duty beam and #45 guide rails, featuring a wide spacing between rails for rigid, stable performance during high-load processing.
5 Axis Bridge Saw
5 Axis Bridge Saw Machine
Quick Information
Model: BS-600CNC/5+1A(New)
Blade: 350–625mm
Max. Cut: L3700×W2500×T180 mm
Motor: 22KW Permanent Magnet
Total Power: 40.75 KW
Shipment: Fits HQ Container
PRODUCT OVERVIEW
About this machine
The 5 Axis CNC Bridge Saw Machine (Model: BS-600CNC/5+1A) supports a maximum 600mm saw blade and cutting thickness up to 15cm, making it ideal for processing thick slabs of granite, marble, quartz, artificial stone, and sintered stone porcelain. Equipped with a precision camera for automatic plate positioning and workpiece size calculation, its machine head rotates 0~360° and tilts 0~90° to enable multi-angle, multi-directional processing. Powered by an integrated CNC system and industrial computer, it delivers fully automatic stone production—operators can achieve precise cutting with minimal effort, making it a popular choice for building and home decoration industries due to its user-friendly design and robust performance.
CAPABILITIES
Key Features
22KW Permanent Magnet Motor
Powered by a 22KW permanent magnet main motor with inner-water cooling, enabling core drilling for faucet holes and automatic removal of stone waste.
Dust-Proof Industrial Camera
Adopts a high-pixel, dust-proof industrial camera with an auto-opening cover, ensuring durability, long service life, and reliable automatic plate positioning.

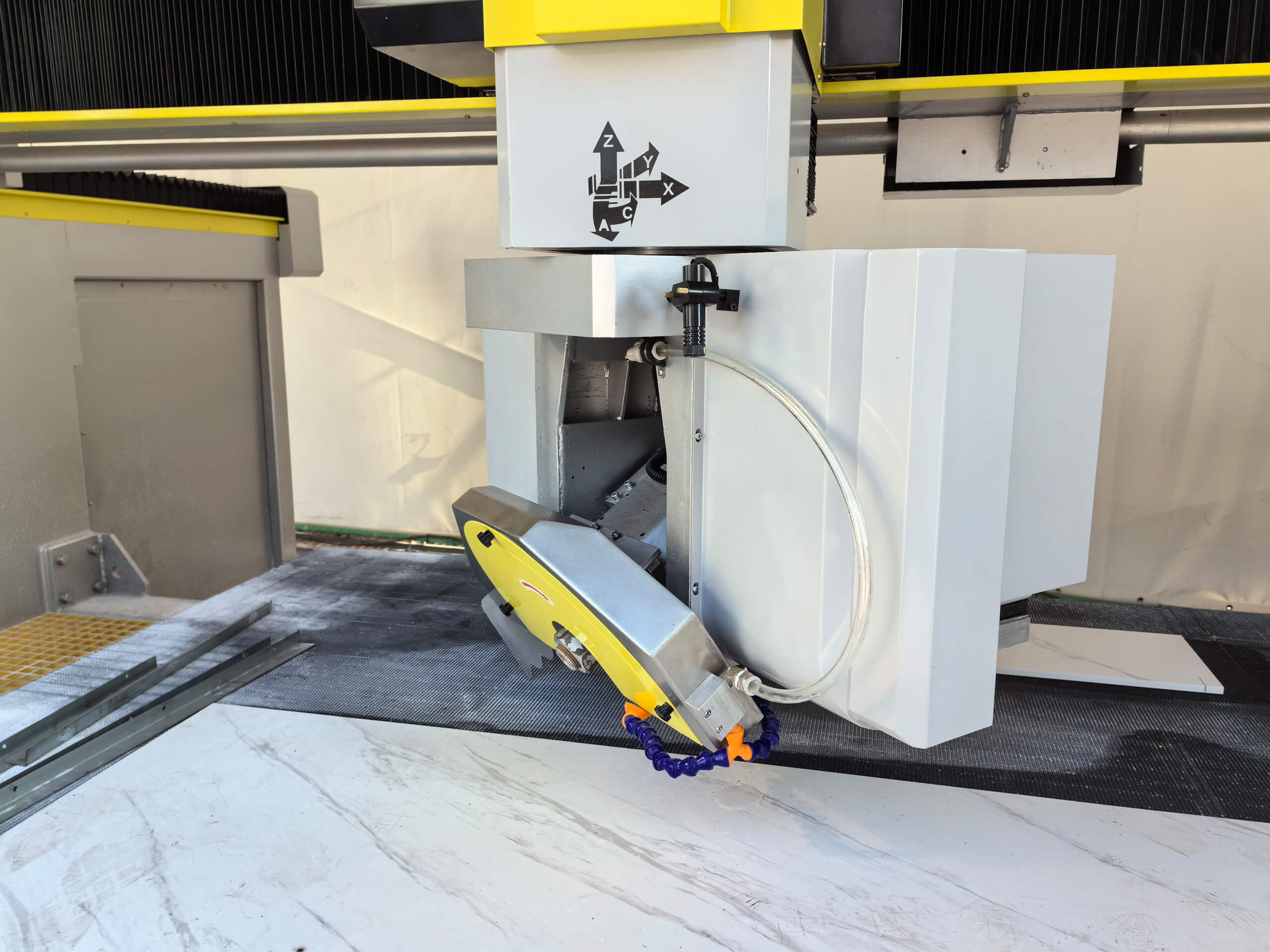

5-Axis Multi-Angle Processing
A-axis tilts 0~90° and C-axis rotates 0~360°, enabling precise multi-angle and multi-directional cutting, beveling, and profiling for complex stone shapes.
7.5KW Milling Spindle
Integrated 7.5KW electric spindle supports milling bits for detailed edge processing and custom cutouts, expanding the machine’s versatility.
Automatic Precision Tools
Includes automatic blade presetting (for both blades and milling bits) and an automatic thickness measuring probe, ensuring consistent accuracy and reducing setup time.
TECHNICAL DATA
Technical Specifications
| Model | BS-600CNC/5+1A(New) |
|---|---|
| Worktable | PVC+Rubber surface; Size: L3700*W2300 mm (1800 + 700mm) |
| Max. Cutting Size | L3700*W2500*T180 mm |
| Cylinders | 5 Groups |

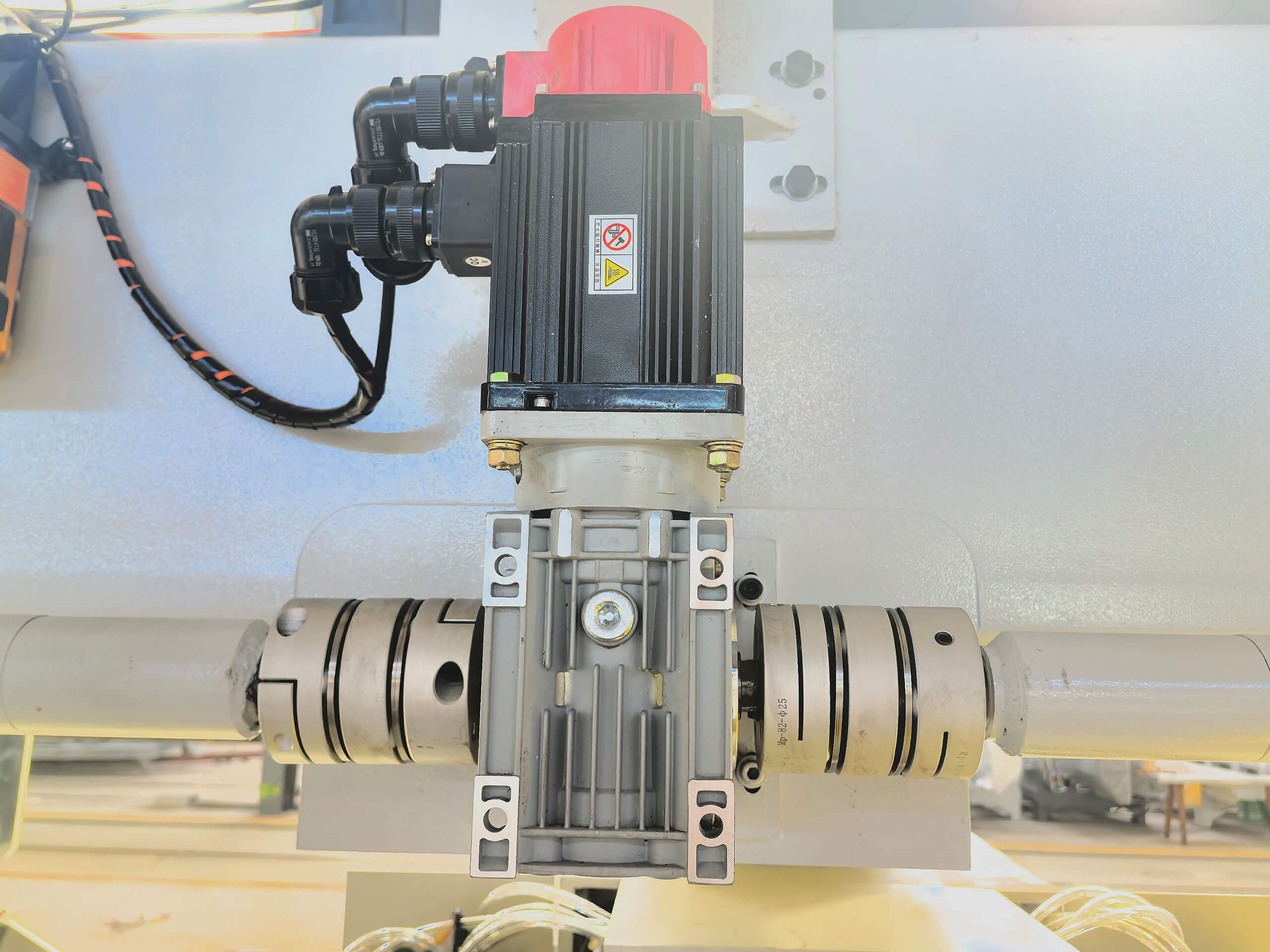

| X/Y/Z-axis Transmission | X/Y: Taiwan Linear Guide Rail + helical rack & gear; Z: Taiwan Linear Guide Rail + ball screw + planetary reducer |
| Axis Speed | X: 50 m/min; Y: 35 m/min; Z: 6 m/min |
| Head Movement | C-axis: 0°–360° rotation (ZHONGDA LEADER Robot Reducer); A-axis: 0°–90° tilt (ZHONGDA LEADER Robot Reducer) |
| Camera Brand | Hikvision |
| Blade Diameter | 350–600 mm |

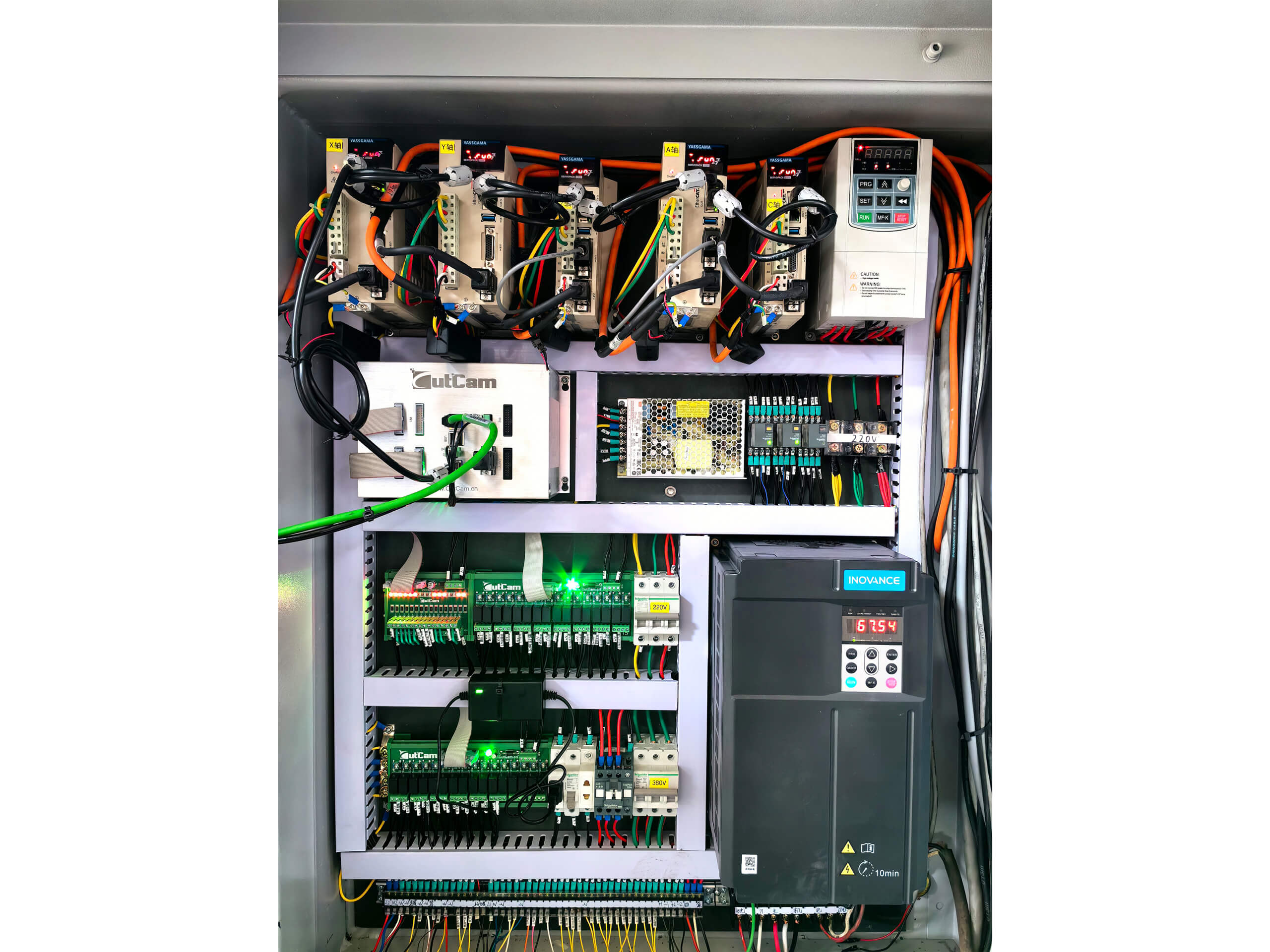

| Control Center | Option 1: Industrial computer + RTCP CNC controller + Cut Cam software + YUHAI Servo Motor; Option 2: Esa System |
| Main Motor | Self-developed 5-axis special motor, 22KW permanent magnet motor with frequency control & inner-water cooling |
| Router Power | 7.5 KW (Max. 15,000 RPM) |
| Total Power | 40.75 KW |
| Suction Cup Lifting Capacity | 500 kgs |
| Machine Dimensions | Standard: L5850*W4680*H3560 mm; With front sliding door: L6230*W4900*H3560 mm |
| Water Consumption | 2 m³/h |
| Total Weight | 7.5 ton (8 ton with front door) |
| Prontective door Dimensions | L6230*W4900*H3560mm |
| Shipment | Main part delivered as whole (fits HQ container) |
WHERE IT WORKS
Applications

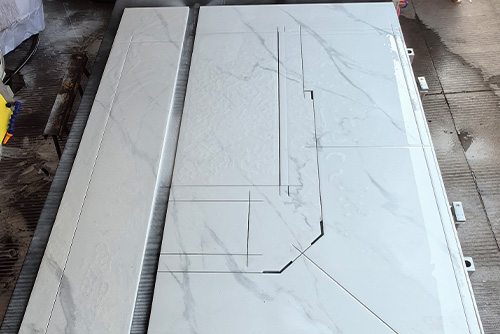

Stone Fabrication Factories
Ideal for high-volume production of granite, marble, quartz, and sintered stone slabs, supporting thick material cutting (up to 150mm) and complex profiling for large-scale projects.

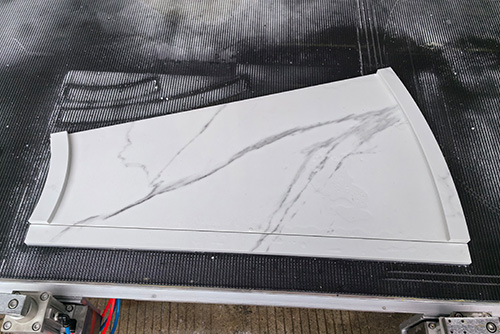

Commercial Construction Projects
Enables multi-angle beveling, 3D carving, and custom cutouts for building facades, interior walls, and public space stone installations, ensuring consistent quality and fast turnaround.

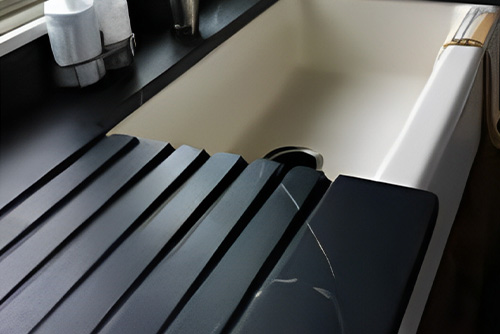

Residential Countertop Manufacturing
Provides automatic visual positioning and one-click processing for kitchen/bathroom countertops, sink cutouts, and edge milling, reducing manual labor and material waste.

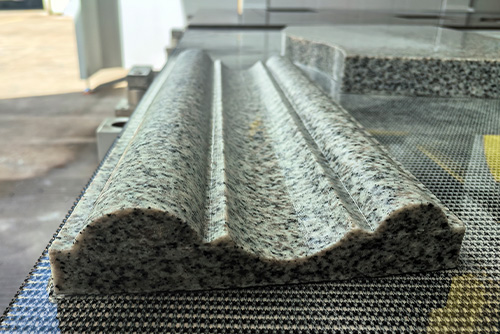

Custom Stone Art & Decoration
The 0~360° rotating head and 0~90° tilting capability allow intricate 3D shaping, making it suitable for decorative stone pieces, fireplace surrounds, and bespoke interior elements.
SEE IT IN ACTION
Video Demonstrations
Function Display
PERFORMANCE
Performance Comparison
Compare our 5 Axis CNC Bridge Saw with traditional stone cutting machines:
| Feature | Our 5 Axis CNC Bridge Saw | Traditional 3-Axis Bridge Saw | Standard Waterjet Cutter |
|---|---|---|---|
| Axes of Motion | 5 (A-axis 0~90° tilt + C-axis 0~360° rotation + X/Y/Z) | 3 (X/Y/Z only) | 3-4 (limited 4-axis) |
| Max. Cutting Thickness | 150mm (supports thick slab processing) | 100mm (limited to thin slabs) | 120mm (slow processing speed) |
| Cutting Precision | ±0.02mm (5-axis high-precision positioning) | ±0.5mm (manual adjustment required) | ±0.1mm (waterjet inherent limitation) |
| Material Waste | 5-8% (optimized path planning + auto positioning) | 15-25% (manual alignment + rough cutting) | 8-12% (abrasive consumption + kerf loss) |
| Complex Shapes | Excellent (full 3D carving + multi-angle beveling) | Limited (2D only, no beveling) | Good (2D complex, limited 3D) |
| Energy Efficiency | 22KW permanent magnet motor (40% energy saving) | Medium (constant motor load) | Low (high pump power + abrasive cost) |
| Intelligent Functions | Remote control, programming & fault diagnosis | No intelligent functions (manual operation only) | Basic CNC control (no remote functions) |
QUESTIONS
Frequently Asked Questions
Absolutely. Send us your design drawings or specifications, and our team will produce a custom sample for you, along with a detailed production video to showcase the process. As an agile local team, we offer fast turnaround and flexible customization.
Our facility is located at 8 HAMPDEN RD, CRANBOURNE WEST VIC 3977. To arrange a visit, simply contact our team to book a time—we’ll provide a personalized tour, demonstrate our equipment in action, and answer any questions you have on-site.
Yes! Our machines feature a user-friendly CNC interface that’s intuitive even for beginners. We provide a full operation manual, step-by-step video tutorials, and free ongoing online support to ensure you get up and running smoothly. Optional on-site training is also available.
We offer comprehensive after-sales service, including remote troubleshooting, on-site maintenance, and a stocked inventory of spare parts at our Cranbourne West facility. This ensures minimal downtime and fast resolution of any issues.
As a new Australian-based company, we combine global manufacturing expertise with local service agility. We partner with top-tier suppliers to deliver high-quality machines at competitive prices, and our small, dedicated team provides personalized attention, fast response times, and flexible solutions tailored to your business.
