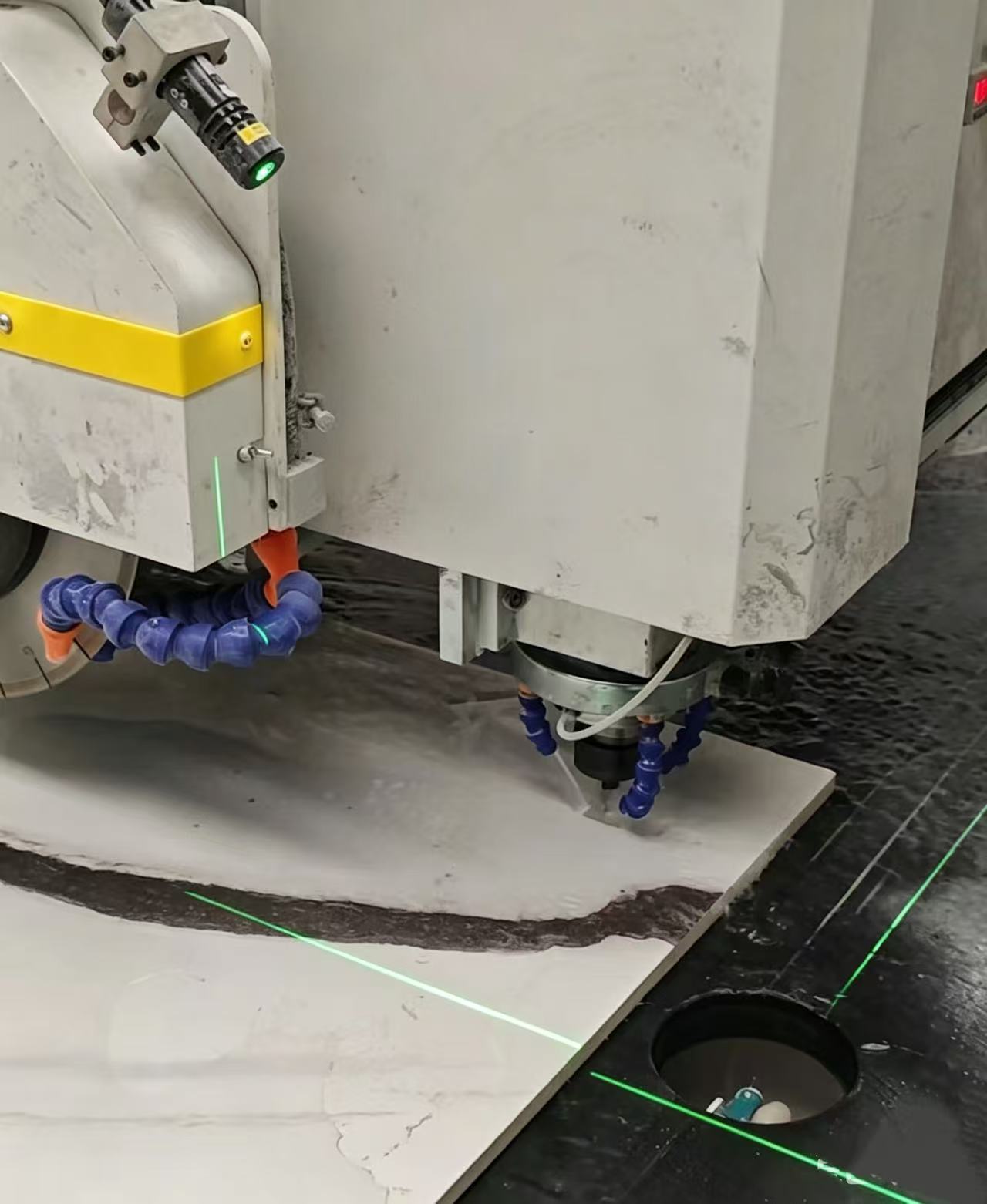

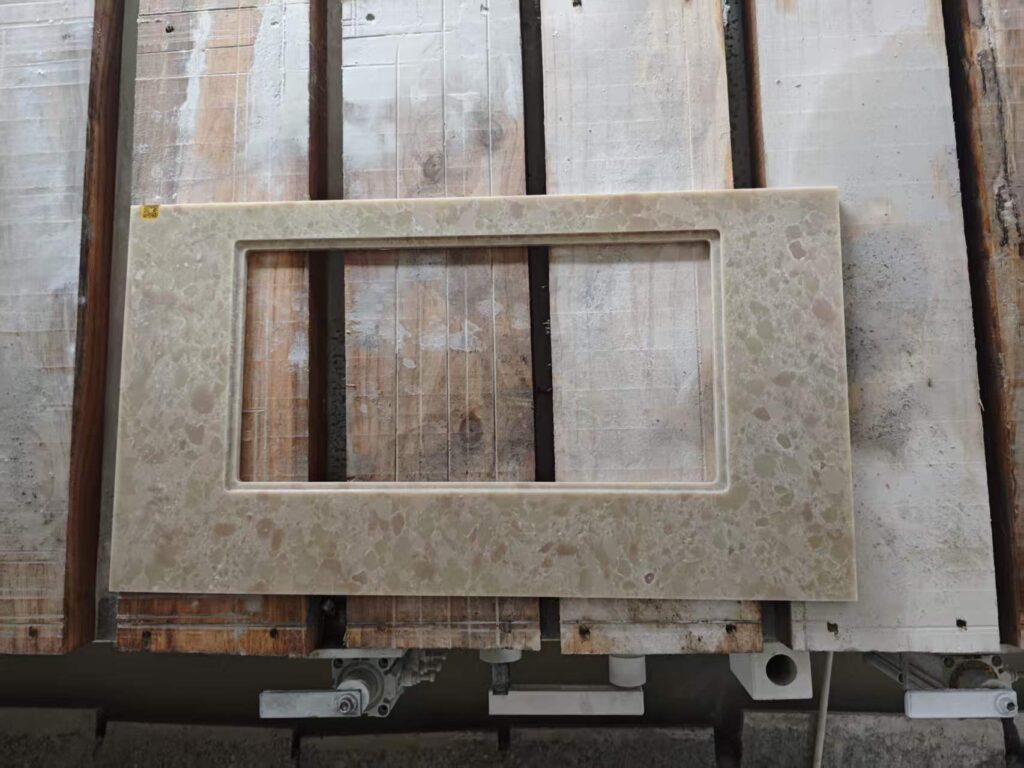

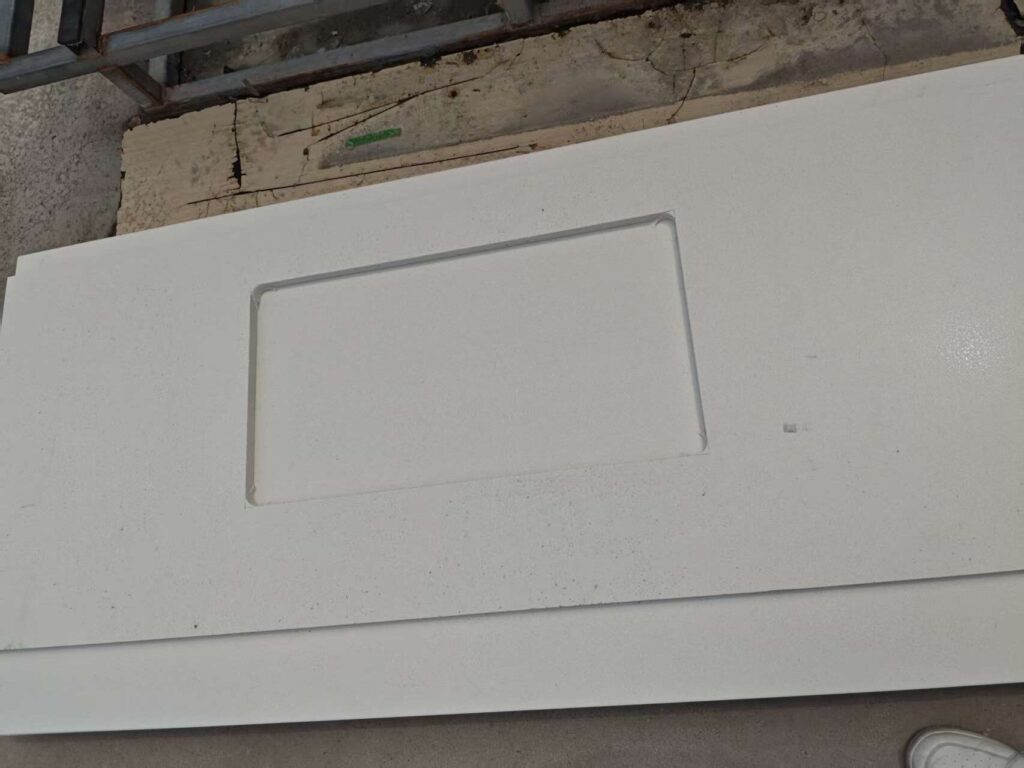

A 6 kW high‑speed motor is added to the 5‑axis system, enabling machining of inner‑corner profiles unachievable by the saw blade and expanding special‑shape cutting capabilities;

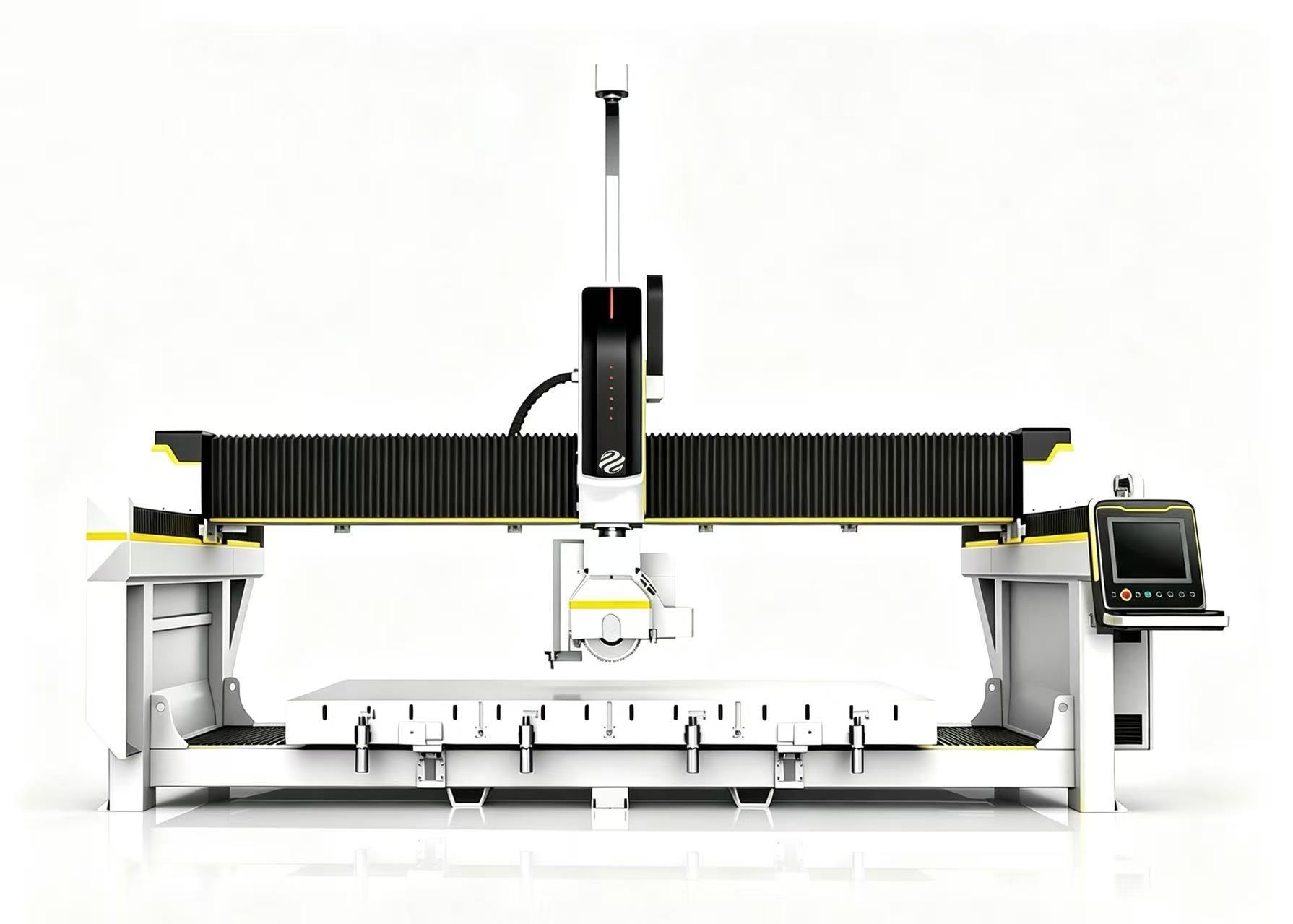

5 Axis Bridge Saw
GS Bridge Saw Machine (5+1/2/3 Version)（GSBS3620）
Quick Information
Model:GSBS3620 (5A+1/2/3) Version
C-axis:Equipped with rotary support assembly

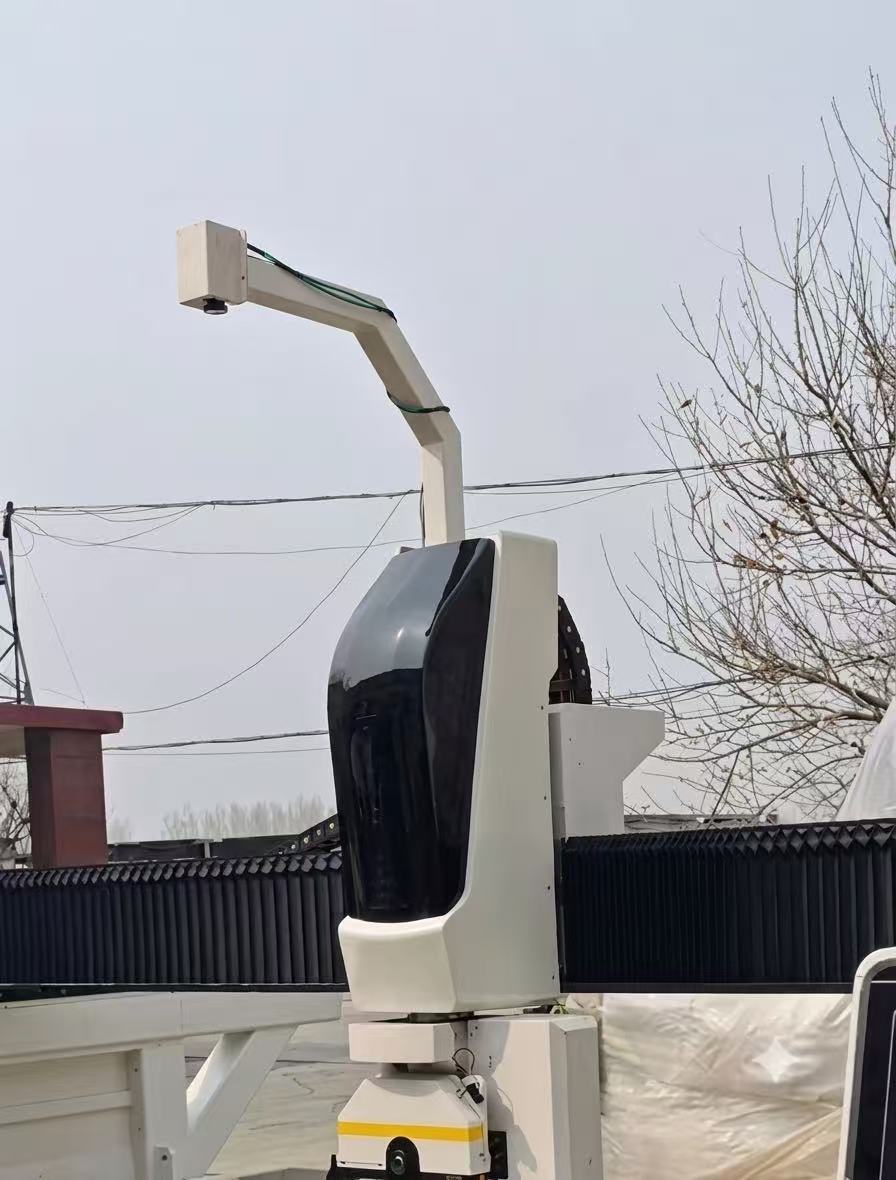

Vision system:Hikvision (Photo location)

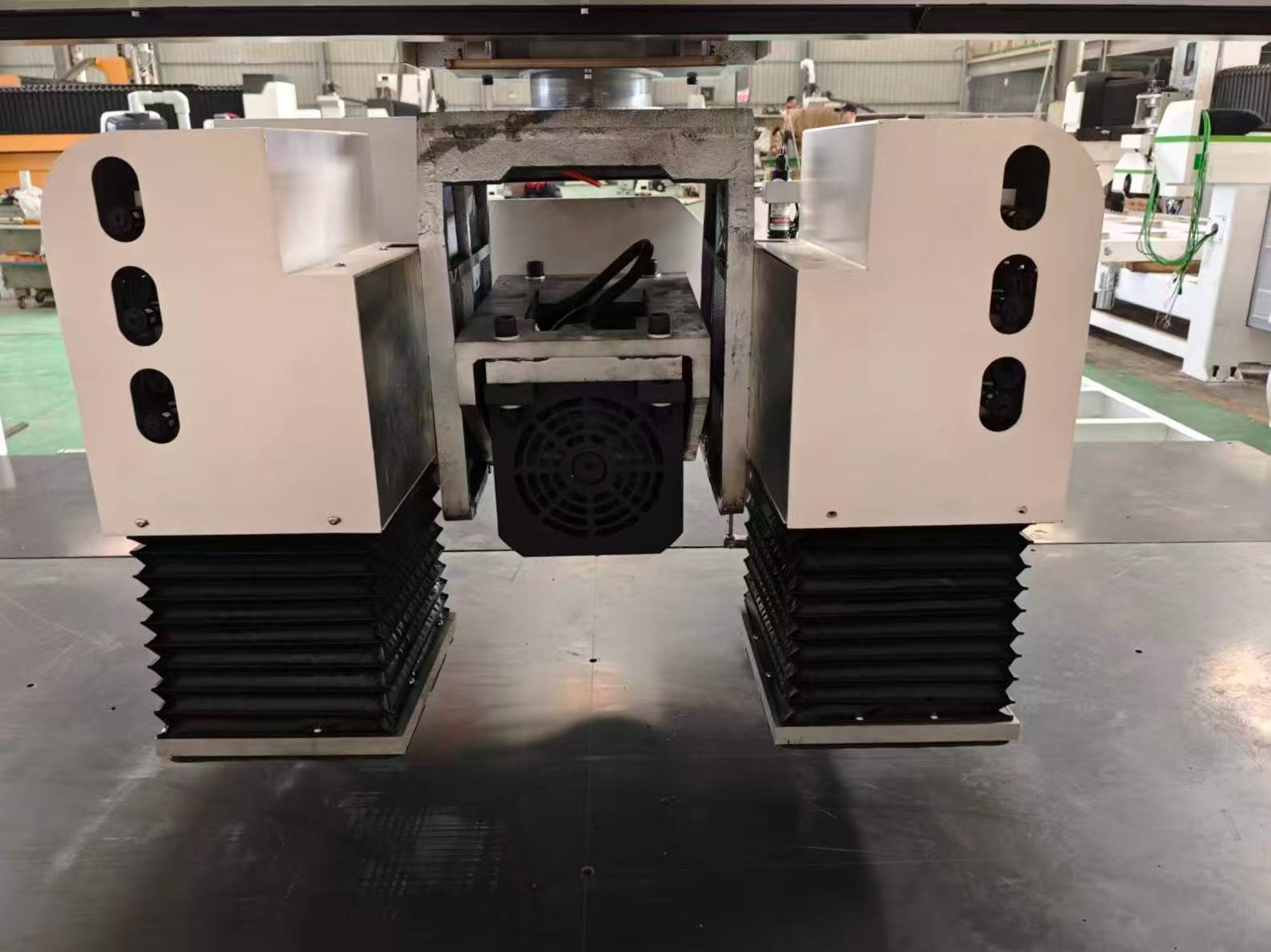

Suction Cup:Dual suction cup slab shifting assembly
Tapping motor power:6kw
X&Y&Z working size:3600mm * 2000mm * 400mm
PRODUCT OVERVIEW
About this machine
GSBS3620 (5A+1/2/3 Version) applies bus‑type absolute servo drives and Hikvision vision positioning. It comes with dual suction‑cup auto‑shifting and an extra 6 kW drilling motor. Supported by RV reducers and CAD import, it delivers precise profiling and efficient stone cutting.
CAPABILITIES
Key Features
One‑click Excel typesetting with visual positioning function. WYSIWYG suction‑cup moving table supports automatic nesting for material savings;
Equipped with bus‑type absolute‑value servo system; no homing required upon power‑on;

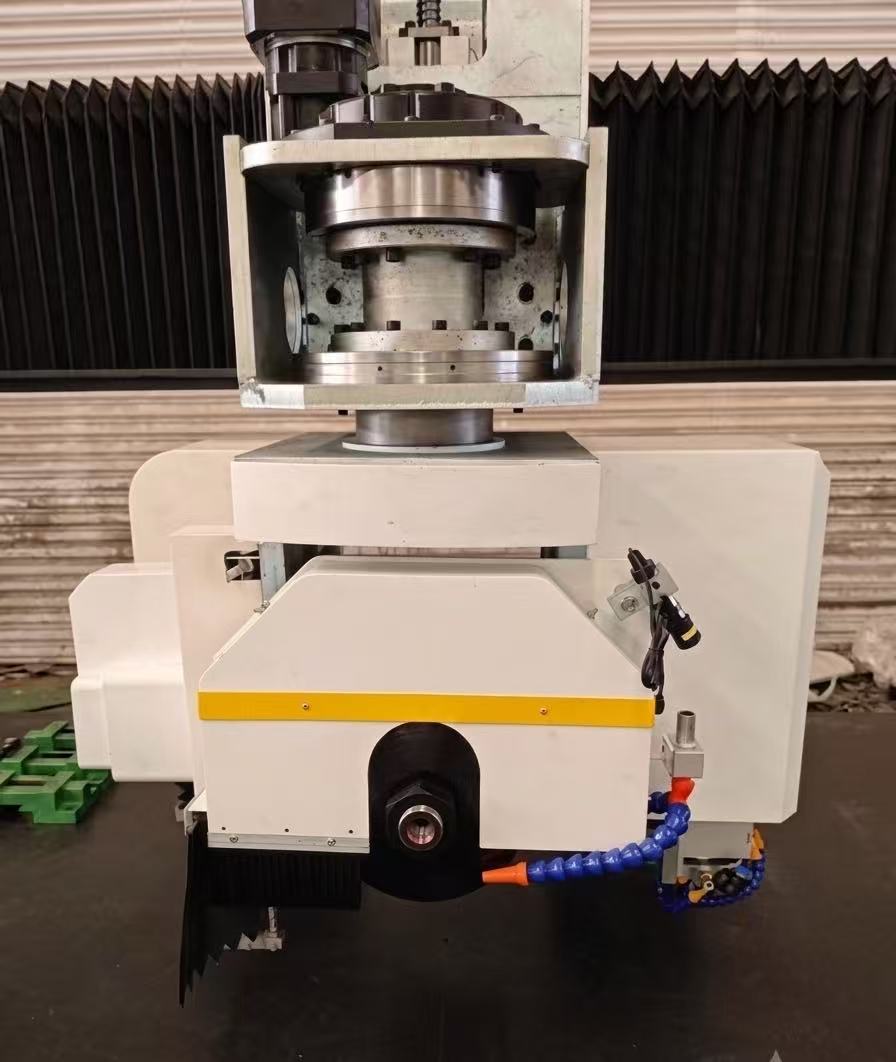

The 5‑axis head features high‑precision RV reducers;
TECHNICAL DATA
Technical Specifications
| Model | GSBS3620 Five Axis (5+1/2/3) Version |
|---|---|
| X/Y/Z‑Axis Travel | 3600mm * 2000mm *400mm |
| C-axis | Equipped with rotary support structure |
| A-axis | 0~90° |
| Machine Bed Structure | Front & rear detachable (shipping dimension ≤2.3 m) |
| Beam Assembly | Double-layer square tube welded structure with stress relief annealing |
| Saw Blade Motor Power | Taizhou Sinatech 15 kW VFD motor (18.5 kW permanent magnet motor optional) |
| Saw Blade Motor Speed | 0–3300 rpm (4000 rpm permanent magnet motor optional) |
| Clampable Saw Blade/Diameter | 350/400 mm (Bore: 50 mm) |
| Drive System Type | Bus-type AC servo drive |
| Drive System Brand | Weichuang Servo Drive (Listed company brand) |
| Drive System Power | 1.5 kW |
| Drive Motor | Weichuang Servo Motor |
| Motor Configuration | 1 pc X-axis, 2 pcs Y-axis, 1 pc Z-axis, 1 pc C-axis, 1 pc A-axis |
| Inverter | 15 kW Inverter |
| Side Milling Motor | 6 kW |
| Control System | self-developed 5-axis control system |
| Transmission Mode | Taiwan TBI high-precision 3210 ball screw for Z-axis; high-precision helical rack & pinion for X/Y axes |
| Tool Setting Device | Automatic tool setter |
| Material Clamping Cylinders | 5 pcs (4 front + 1 rear) |
| Photo Positioning | Hikvision |
| Suction Cup | Dual suction cup gusset plate |
| Positioning Cylinders | 5 pcs (3 front + 2 left) |
| Worktable Type | Rubber worktable with feeding auxiliary roller, tilting range 0~85° |
| Working Voltage | 380V/50HZ 380V / 50Hz |
| Overall Dimension | 5700 × 3300 × 2710 mm (3400 mm with photo positioning) |
| Weight | 4500 KG |
| Style And Model | Support customization |
