Independent R&D
Self‑developed design, non‑spliced integrated machine
SawJet & WaterJet

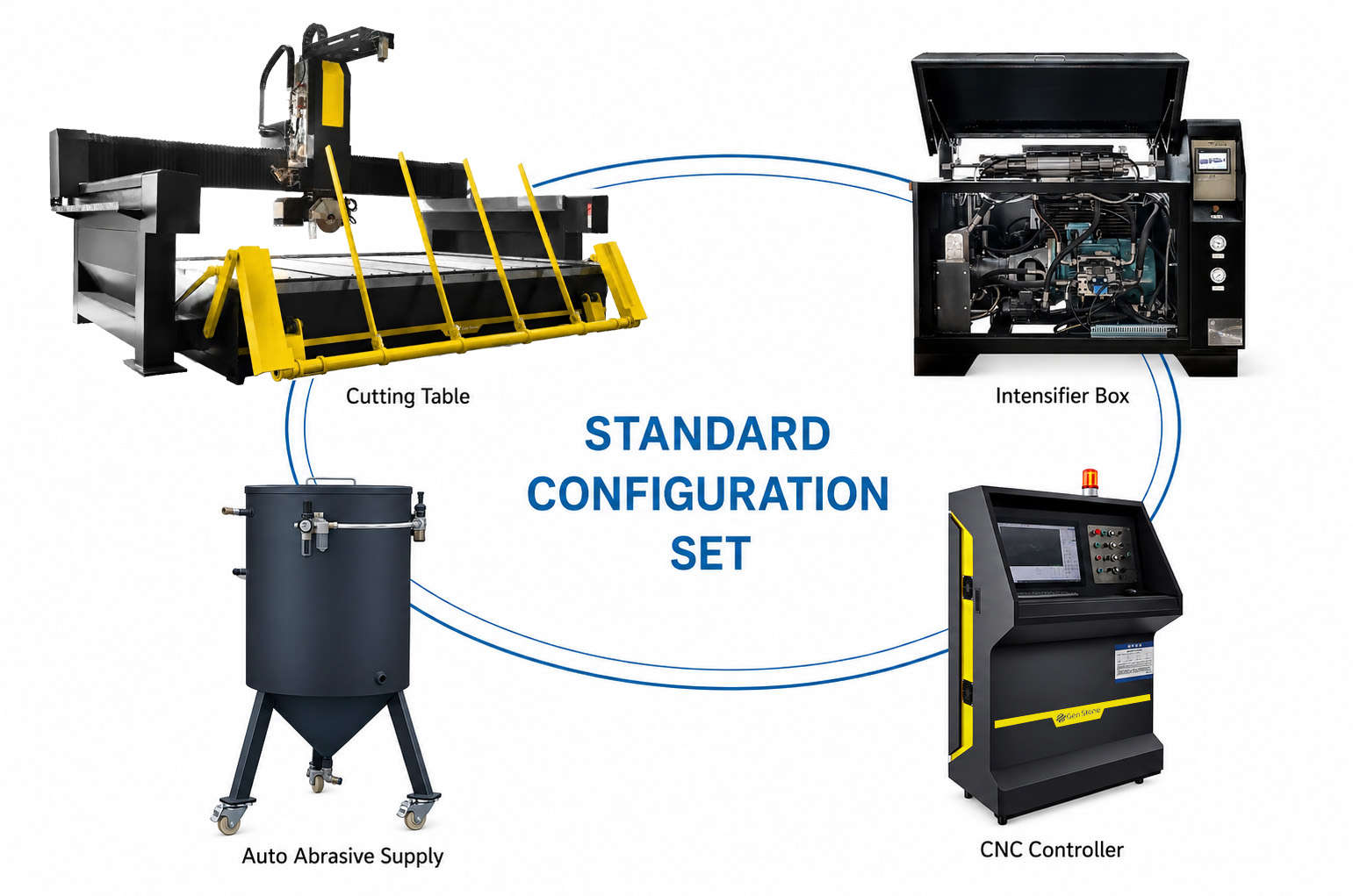

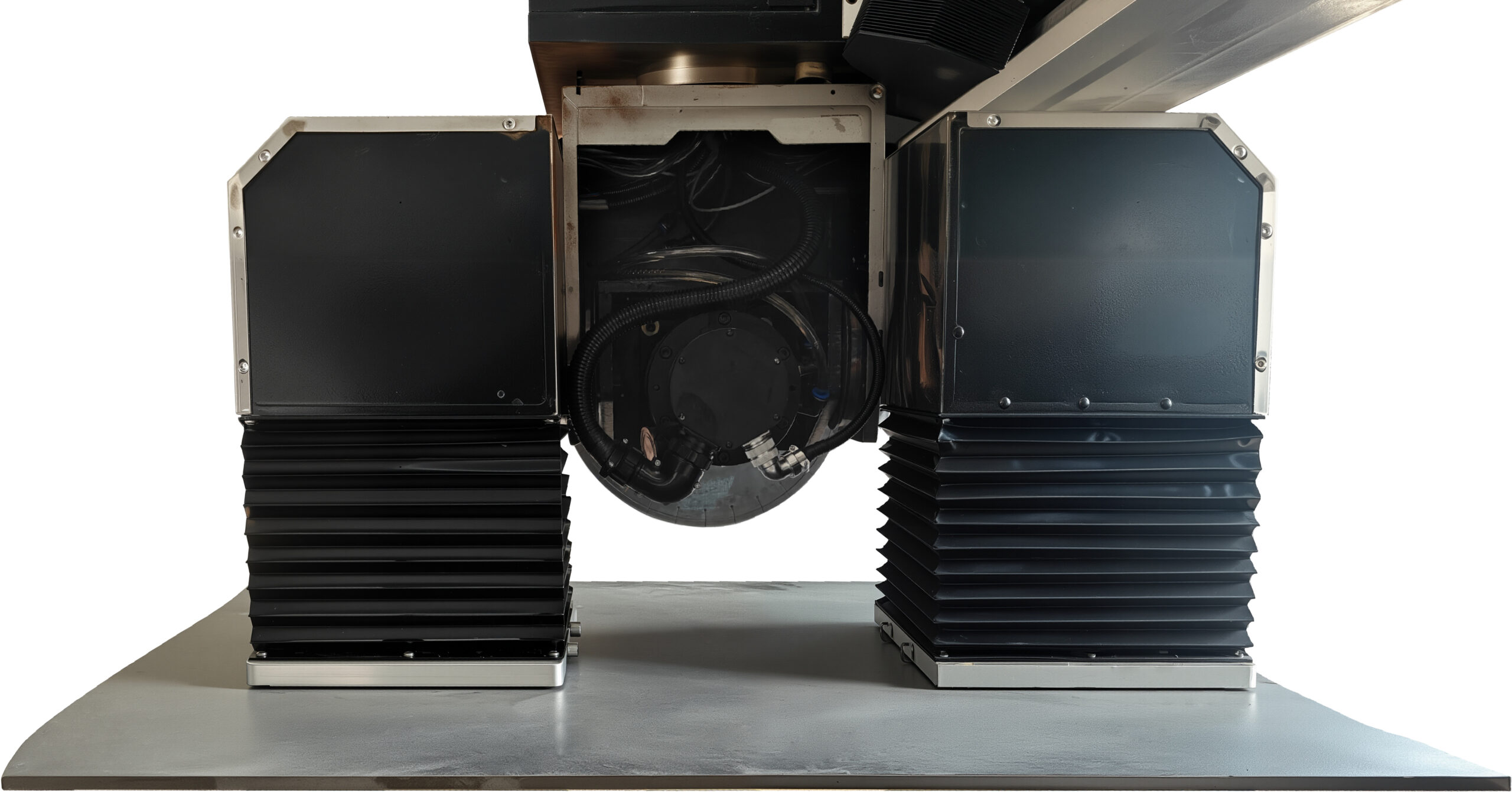

BridgeCutting+ AC 5‑Axis Waterjet + Milling Head(SW‑400/500)
Quick Information
Model:SW400/500
CNC Control System:Italy imported system
Spindle Cooling Method:Water cooling / Oil cooling
Milling Spindle Power:4.5 KW
Total Machine Weight:6.5 Tons
Cutting Table Size (L × W):4100mm × 2450mm
PRODUCT OVERVIEW
About this machine

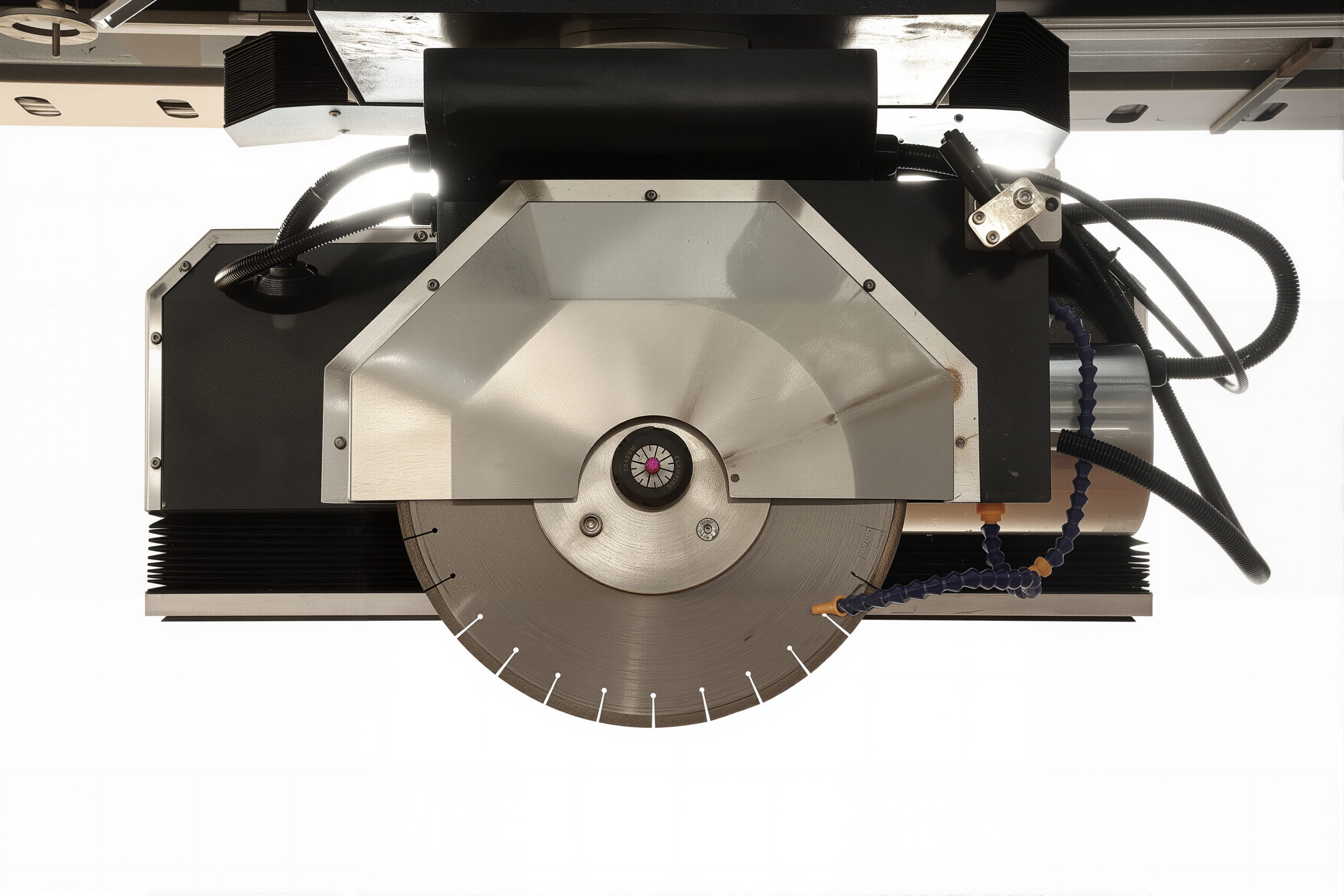

Bridge Cutting + AC 5‑Axis Waterjet + Milling Head（SW400/500） — All‑in‑One
Stone Processing Solution Equipped with high‑performance bridge saw, IP68 waterproof AC 5‑axis waterjet cutting head and 4.5KW milling spindle, enabling cutting, drilling, milling, engraving and polishing in one machine. Perfect for stone, porcelain slab deep processing with high efficiency and precision.
CAPABILITIES
Key Features
Full‑chain Production
Self‑produce welding, fittings and raw materials
High‑end Configuration
Higher‑power spindle & saw‑blade than peers
Wide Processing Range
Process all stone & slabs, support custom options
Premium Components
Adopt Siemens, Schneider, ABB components
Powerful Performance
High‑power output with strong cutting torque
TECHNICAL DATA
Technical Specifications
| Model | SW400/500 |
|---|---|
| Cutting Table Size (L × W) | 4100mm * 2450mm |
| Suction Cup Platform Size | 4400mm * 2200mm |
| X/Y-axis Travel | 3000mm * 2000mm |
| Z-axis Travel | 350mm |
| Bridge Saw A-axis Rotation | 90° |
| Bridge Saw C-axis Rotation | ±185° |
| Waterjet A-axis Rotation | ±65° |
| Waterjet C-axis Rotation | Unlimited |
| Available Saw Blade Diameter | 405 – 450 mm |
| Maximum Working Thickness | 80 mm |
| Bridge Saw Spindle Speed | 3000 rpm |

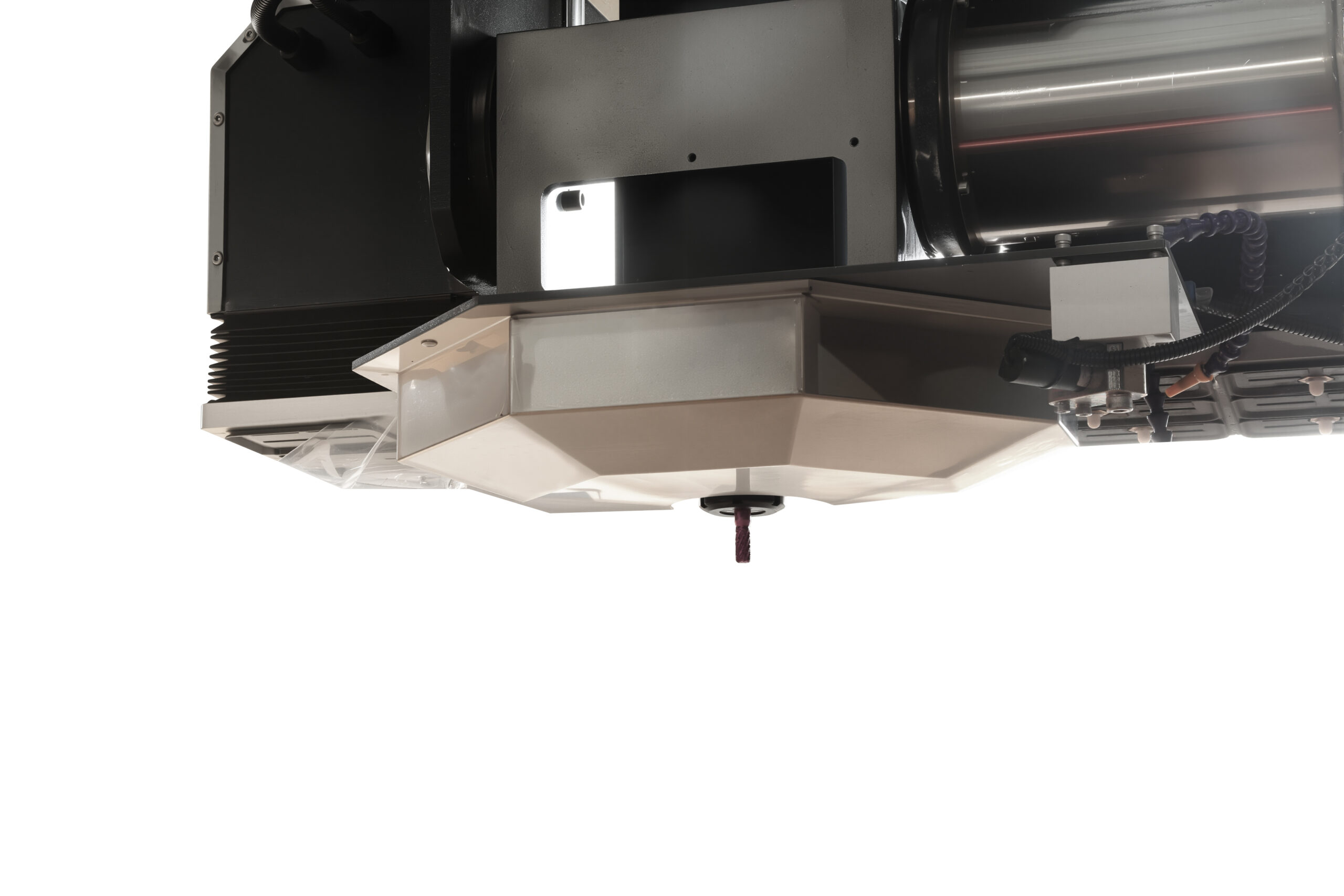

| Milling Spindle Power | 4.5 KW |
| Milling Spindle Speed | 24000 rpm |
| Spindle Cooling Method | Water cooling / Oil cooling |
| Hydraulic Flip Table Range | 0 – 85° |
| Z-axis Balance System | Cylinder balancing system |
| Lubrication Method | Y-beam oil bubble + lubricating oil pump |

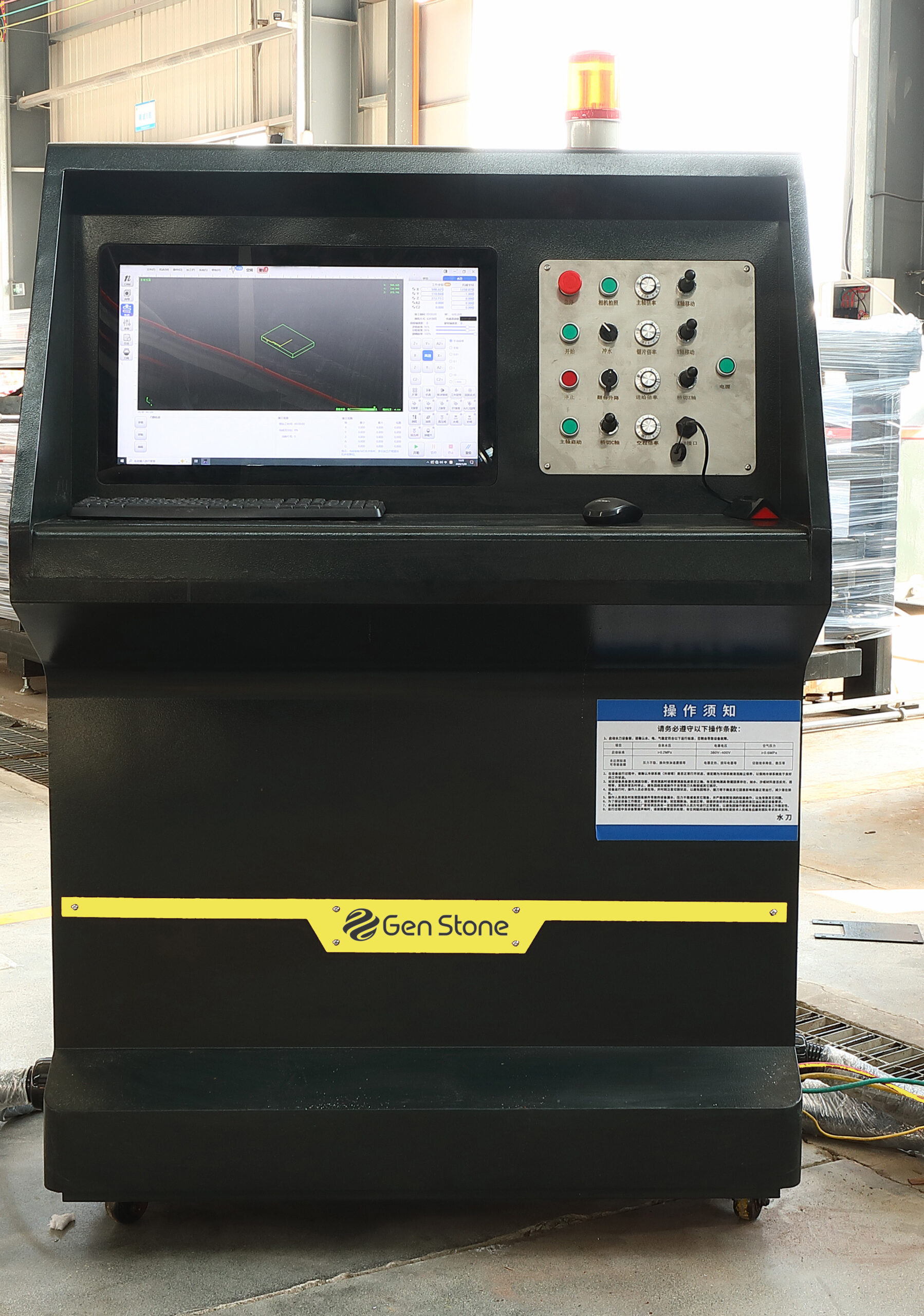

| CNC Control System | Italy imported system |

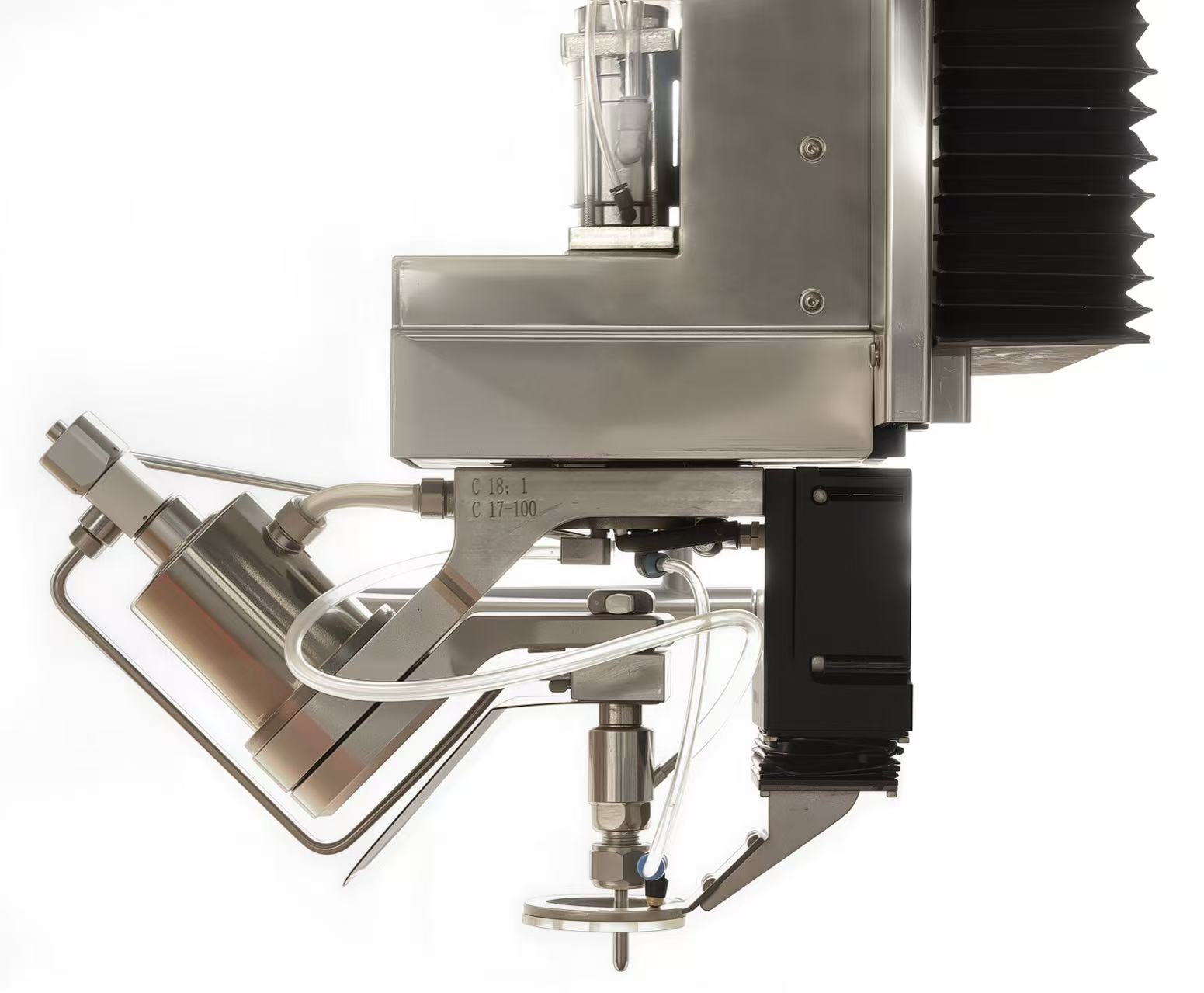

| Waterjet Head Protection Grade | IP68 Waterproof & Dustproof |
| Infrared Guide | Linear infrared emitter |
| Vacuum Suction Cup | Standard equipped |
| Saw Blade Diameter Measuring | Standard equipped |
| Digital Color Camera System | Supported |
| Overall Dimensions (L×W×H) | 6000 * 3600 * 3600 mm |
| Total Machine Weight | 6.5 Tons |
WHERE IT WORKS
Applications

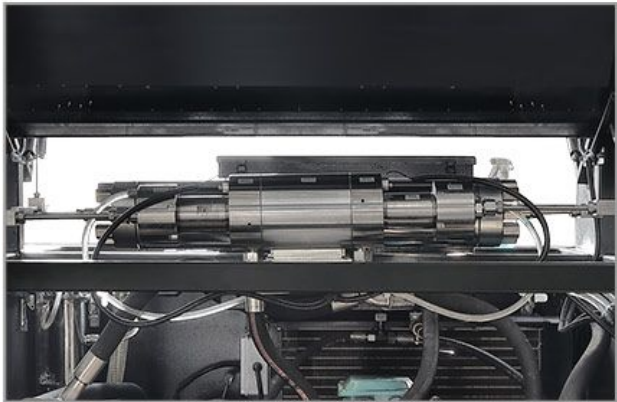

Maintenance‑free Accumulator
Ultra-long-life, maintenance-free energy storage device
Multi‑process Integration

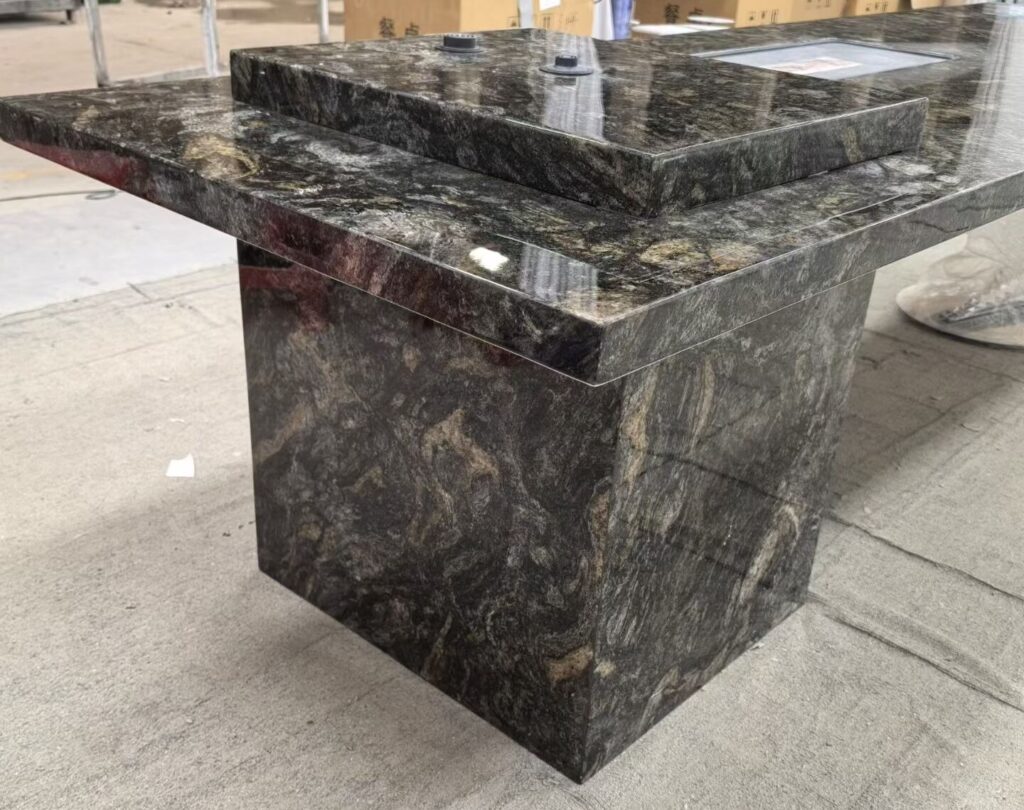

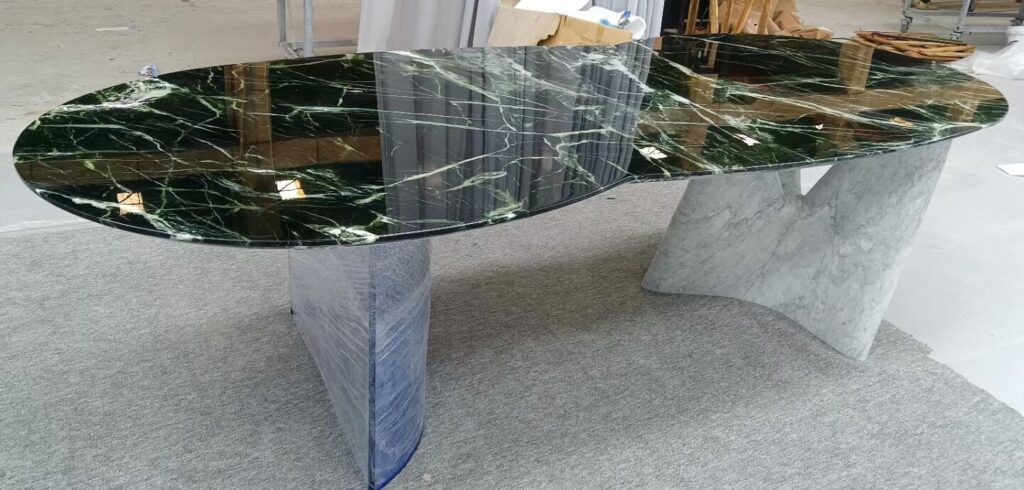

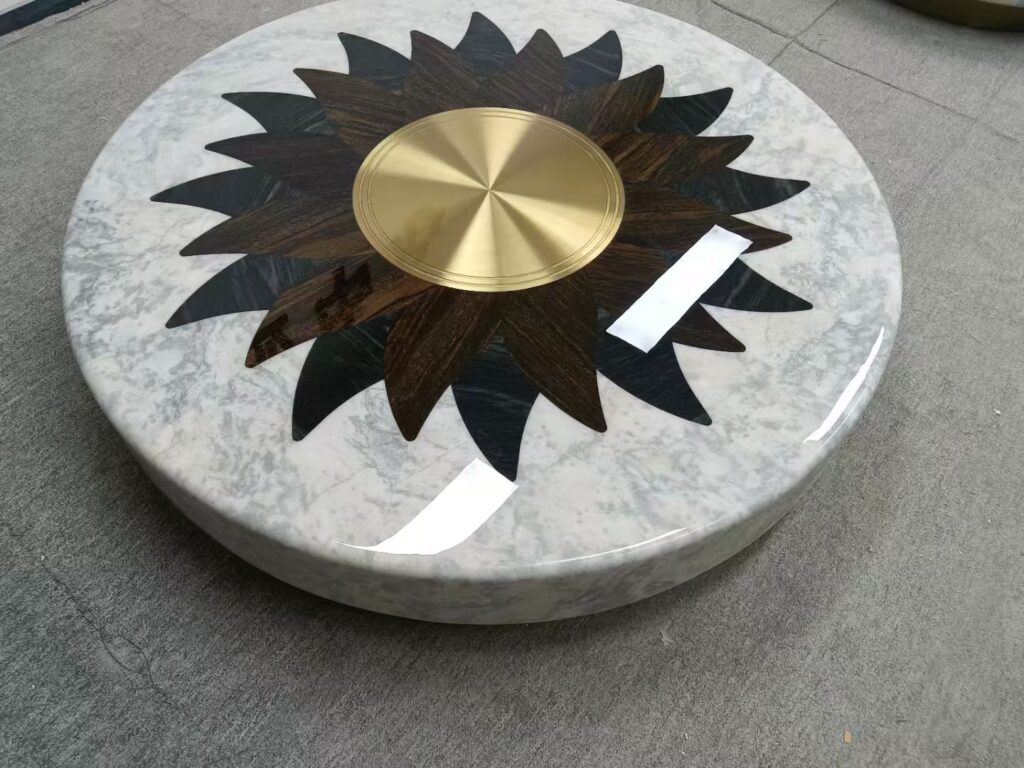

Integrating cutting, drilling, milling, engraving, and grinding, it offers a one-stop solution for the entire process of processing stone and slabs, including cutting, shaping, engraving, and milling grooves.
Full Grinding & Polishing
Optional grinding head and polishing function can directly complete the grinding and polishing of stone and rock slabs, meeting the full process needs from rough machining to fine finishing
Automatic Suction Transfer
Equipped with a suction cup plate-moving function, there is no need for manual plate moving, significantly improving efficiency and reducing labor costs

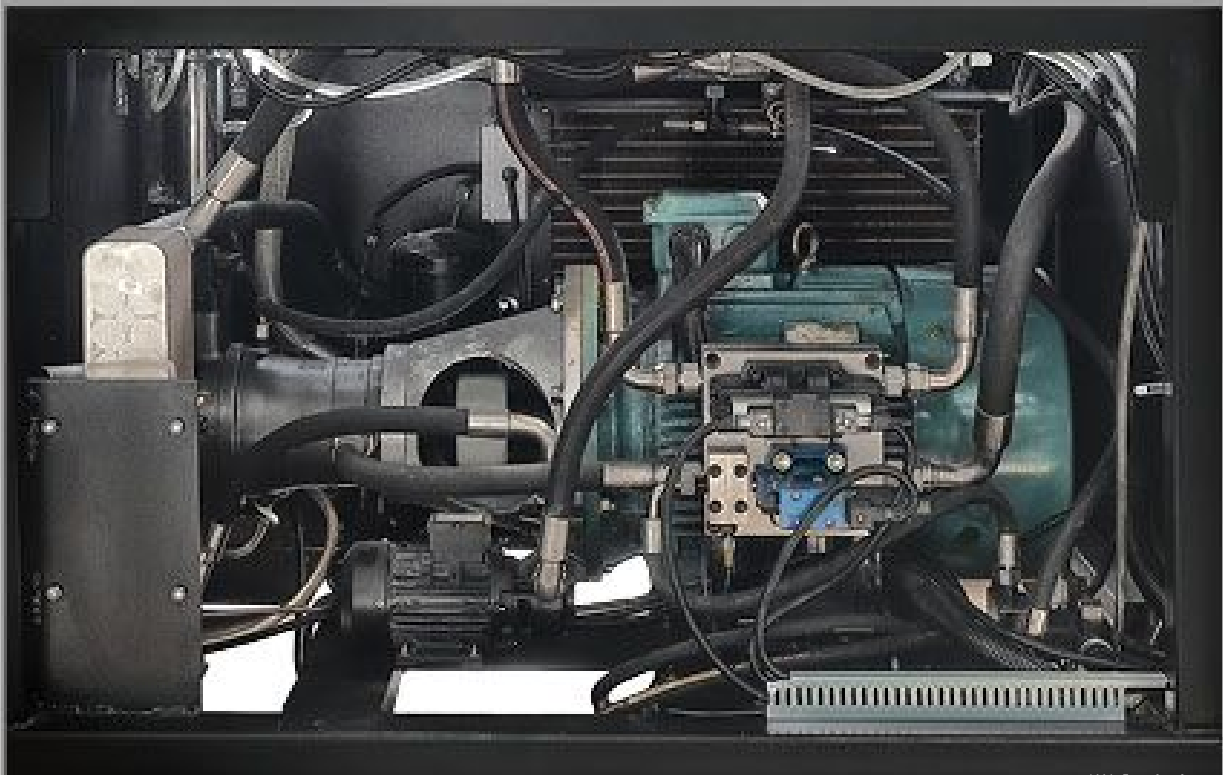

Dual‑circuit Temp Control
Dual oil circuit oil circulation air conditioning cooling with super temperature control
PERFORMANCE
Performance Comparison
TALK TO OUR TEAM
Is this machine right for your workshop?
Tell us what you fabricate, your material range and production requirements. We can help you take the next step.
