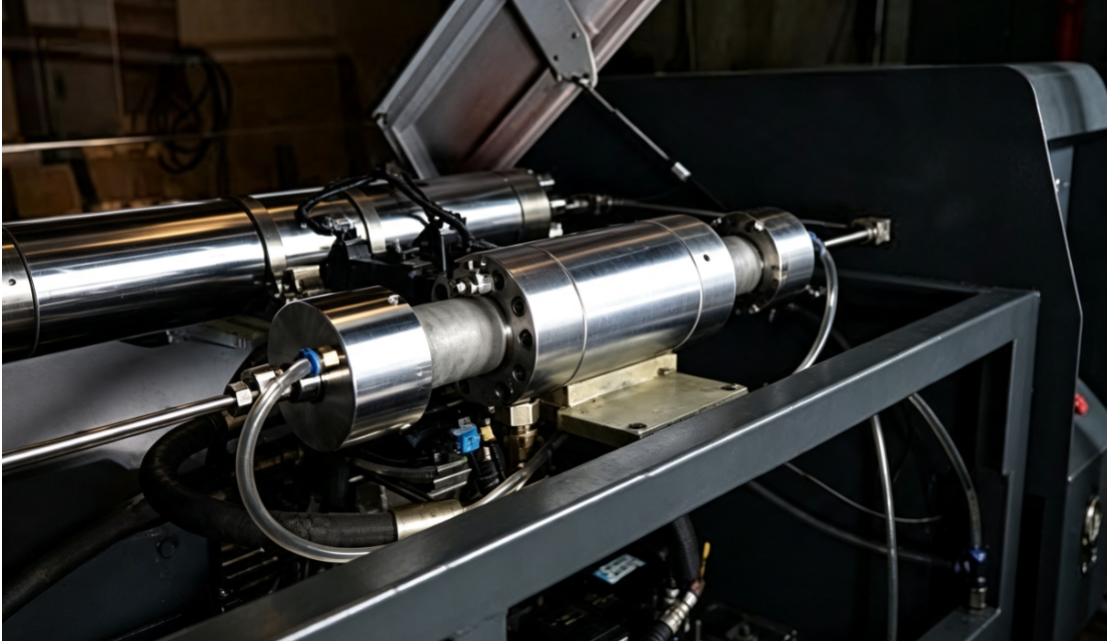

Imported HP cylinder Material
Maintenance-free Water Accumulator
Water Jet
GS 5Axis CNC Waterjet Machine (GSW4020)
Quick Information
Model:GSW4020
Cutting Accuracy :±0.1mm (per 200mm)
Repeatability Accuracy:±0.05mm
Traverse Speed:6500/15000 mm/min
Maximum Pressure:450 MPa
Power Supply:220V/380V/440V/415V, AC 50/60Hz
PRODUCT OVERVIEW
About this machine
The GS 5Axis CNC Waterjet Machine (GSW4020) is a high‑precision cold‑cutting solution for versatile material processing.
It features a high‑performance 5‑axis dynamic cutting head for 45° chamfering, seamless splicing and cutting of irregular shapes. Using ultra‑high‑pressure cold‑cutting technology, it avoids thermal deformation and burrs, suitable for stone, glass, metal and composites.
Equipped with a high‑precision CNC system and real‑time height measurement, it ensures stable, accurate cutting. Its heavy‑duty chassis supports long‑term continuous operation, ideal for countertop deep processing. It fits high‑cube containers for export shipping, with customizable OEM/ODM services available.
TECHNICAL DATA
Technical Specifications
| Model | GSW4020 |
|---|---|
| Cutting Table Size (L × W) | 4100mm*2100mm |
| Cutting Table Weight | 4650 kgs |
| X/Y-axis Travel | 3600mm*1900mm |
| Z-axis Travel | 100mm |

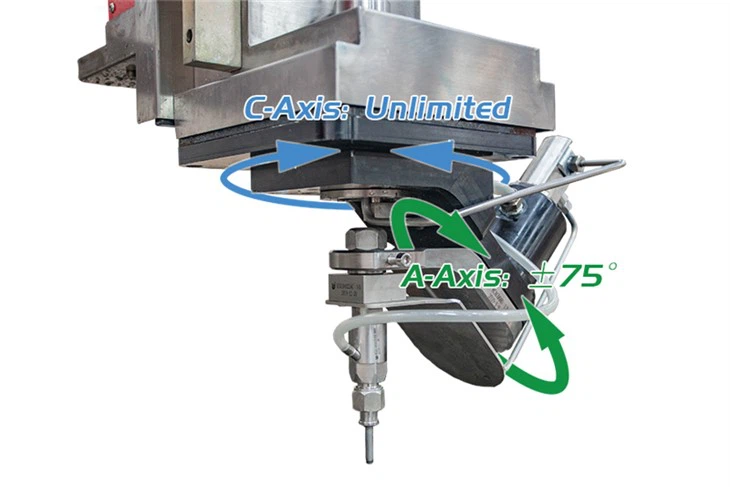

| A-axis Rotation | ±75° |
| C-axis Rotation | Unlimited |
| Cutting Accuracy | ±0.1mm (per 200mm) |
| Repeatability Accuracy | ±0.05mm |
| Traverse Speed | 6500/15000 mm/min |
| Intensifier Unit Size (L×W×H) | 1700mm * 1100mm * 1870mm |
| Intensifier Unit Weight | 1108 kg |
| CNC Controller Size (L×W×H) | 760mm * 730mm * 1680mm |
| CNC Controller Weight | 104 kg |
| Abrasive Feeding System Size (L×W×H) | 800mm * 800mm * 1400mm |
| Abrasive Feeding System Weight | 100 kg |
| Power Supply | 220V/380V/440V/415V, AC 50/60Hz |
| High Pressure Pump Model | Fashion |
| Maximum Pressure | 450 MPa |
| Normal Working Pressure | 320-380 MPa |
| Orifice Size | 0.26 / 0.30 / 0.33 / 0.35 mm |
| Oil Pump Displacement | 71/65 cc |
| Oil Cylinder Diameter | 101.6 mm |
| Machine Appearance Design | Classic |
| Cutting Head Waterproof | IP68 |
WHERE IT WORKS
Applications

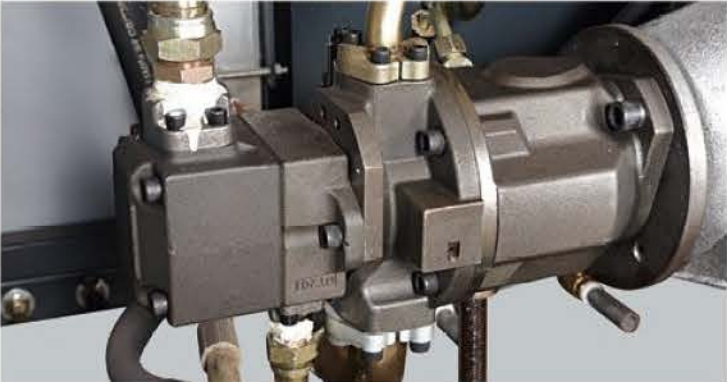

Dual Oil‑circuit, Dual Oil Pump
independent pump cooling oil‑circuit

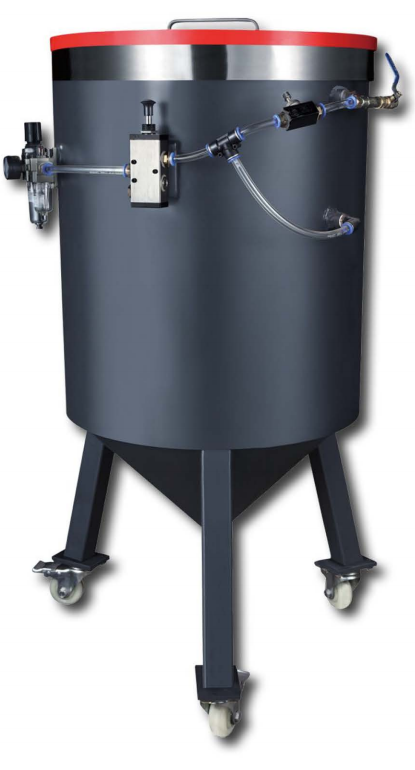

Abrasive Feeding System
1.auto reminding of abrasive level 2.Stainless Steel Funnel avoids any painting pollution 3.Abrasive Filter with Drying Function

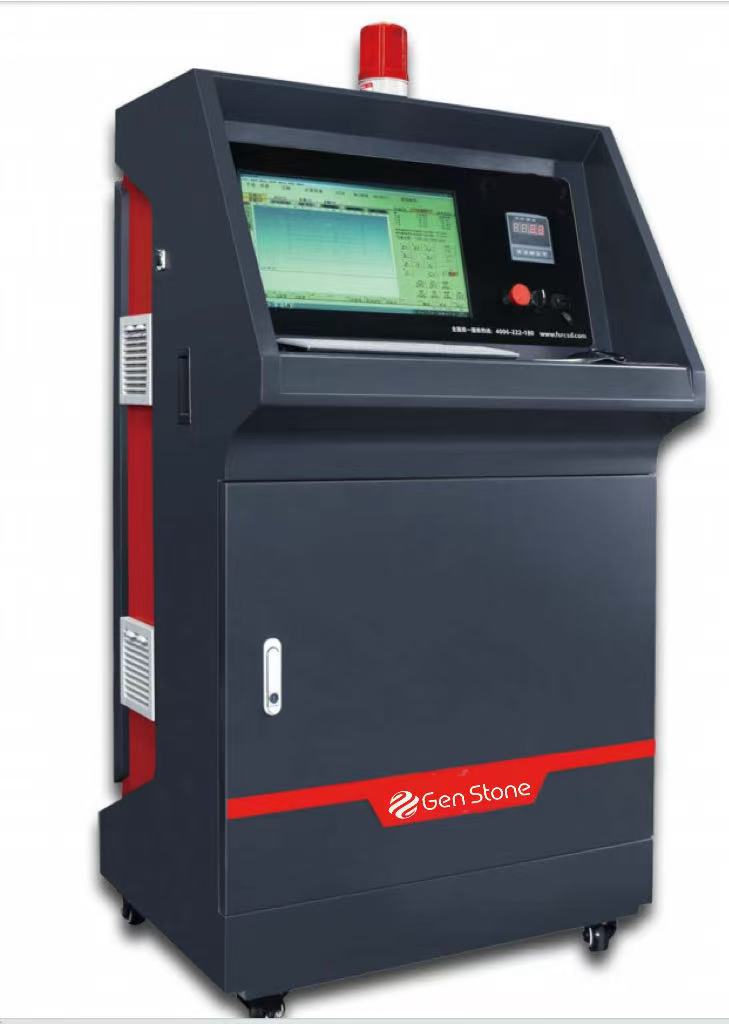

CNC Main Controller
1.19‑inch industrial screen USB access in front panel 2.Heat Exhaust Window
